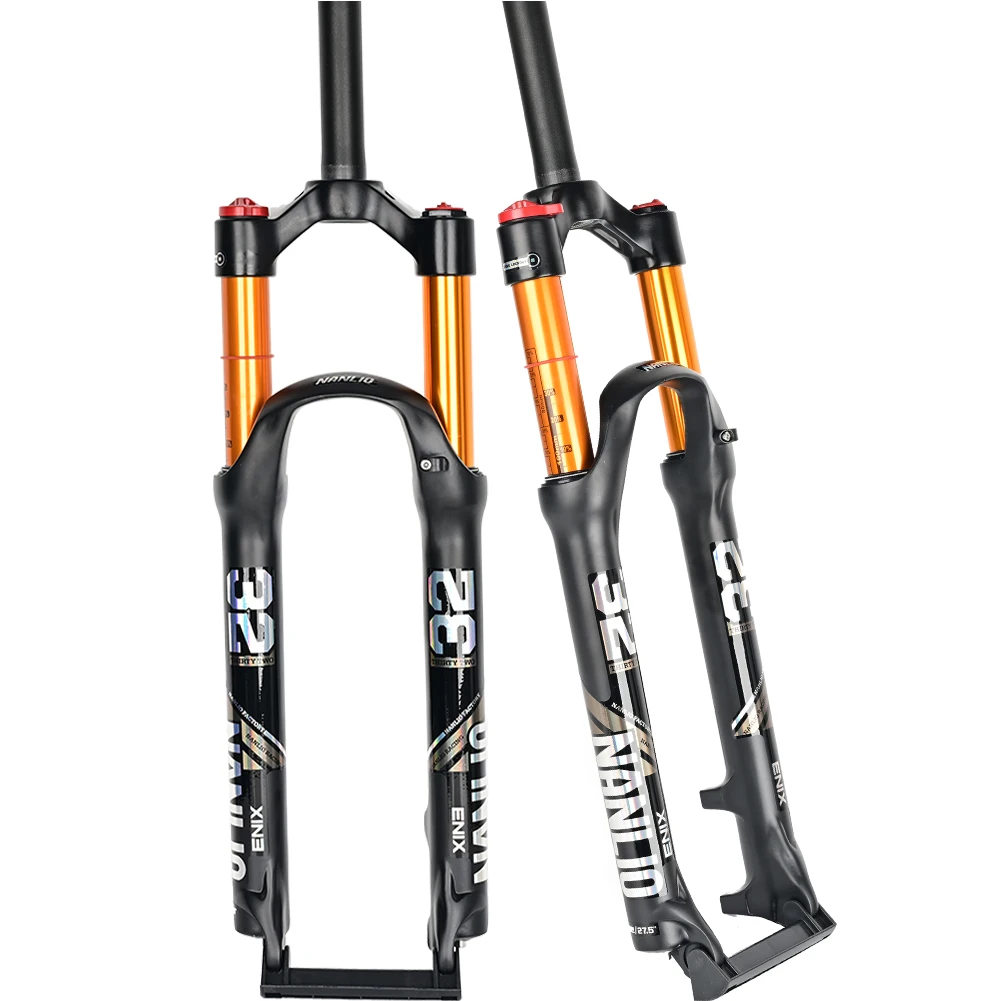

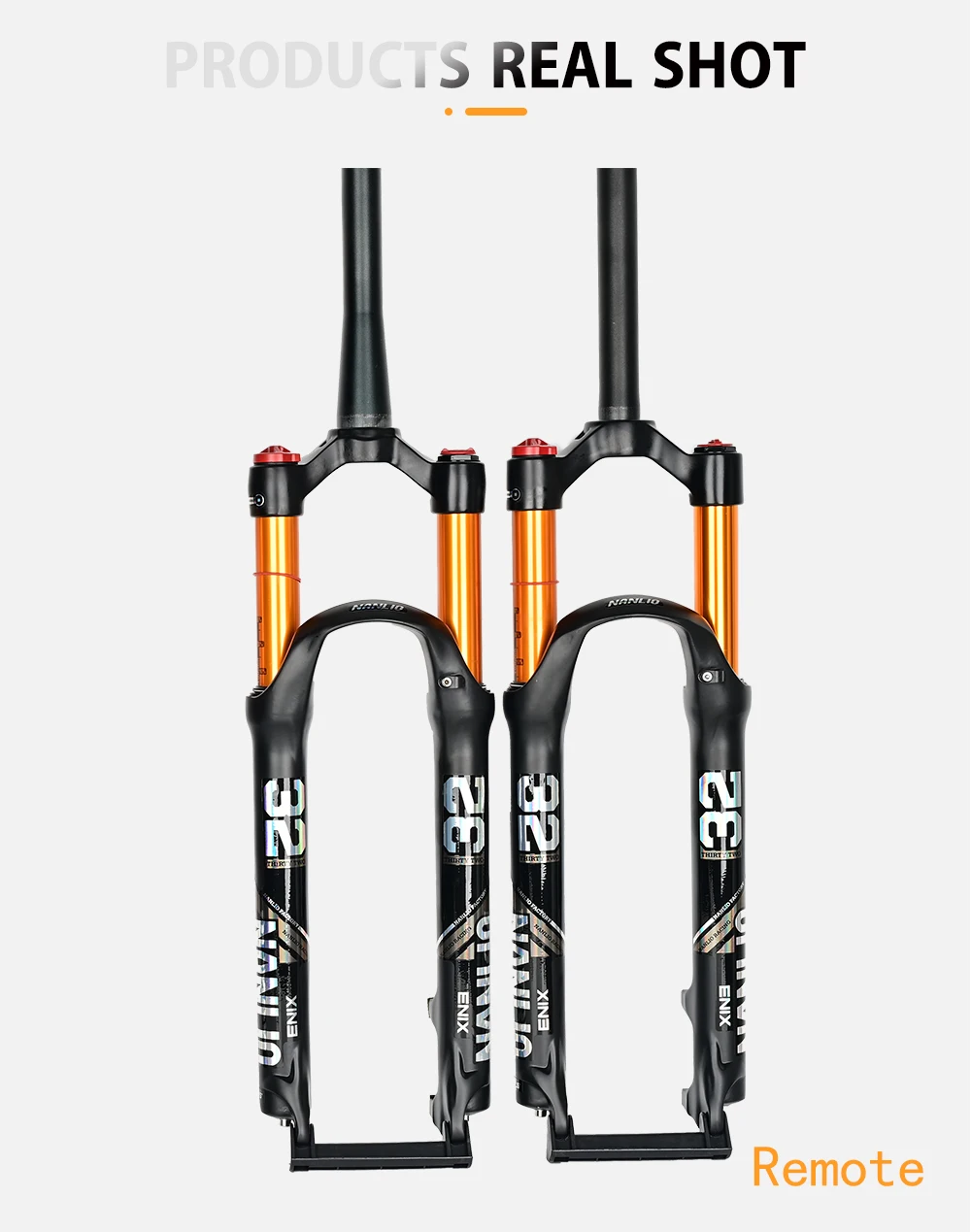

Nanlio MTB Air Fork Bicycle Supension Remote lock Straight

Product parameters:
Name: Nanlio MTB Air Fork Bicycle Supension Remote lock Straight Tapered
Brand: NANLIO

Model: ENIX
Size:26 inch,27.5 inch ,29 inch
Look out: Lookout (LO) / Remote Lockout(RL)
Travel:100mm (120mm refers to the exposed stroke And 100mm is the actual active stroke)
Axle:9mm
Crown: Forged Alloy
Brake: Disc brake
Steerer: Alloy Straight tube:28.6*30*221mm;

Tapered tube:28.6*39.8*258mm
Stanchions: Aluminum 32mm

For buyers and friends in Brazil, we can choose ePakect+ without paper box to send.

The change is very noticeable compared to a spring fork.

PROS:
* Very affordable option if you’re building a entry level bike.
* Easy to install.
* Compression and rebound were decent when bouncing the bike while riding.
* At 185lbs, riding off the 6″ curb caused the shock to compress about 1.5″.

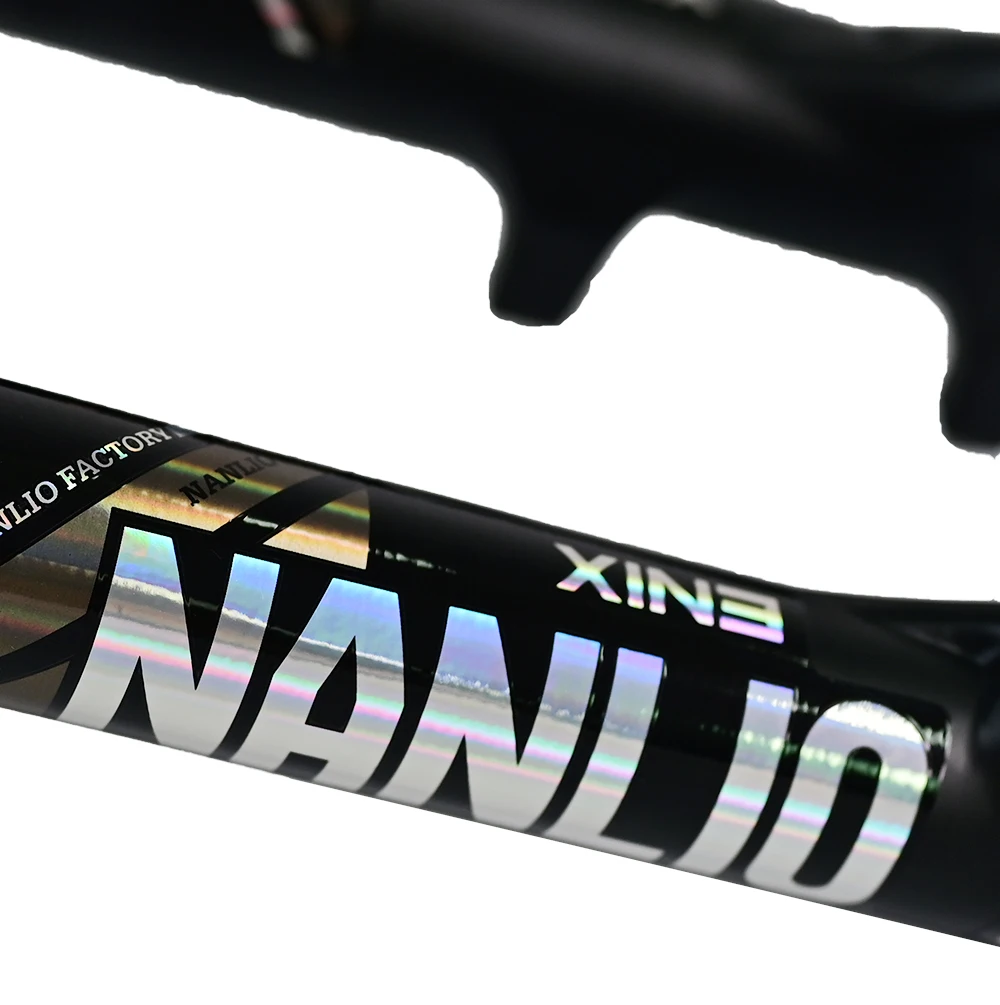

* Paint job is good quality and the shock looks nice.Lockout

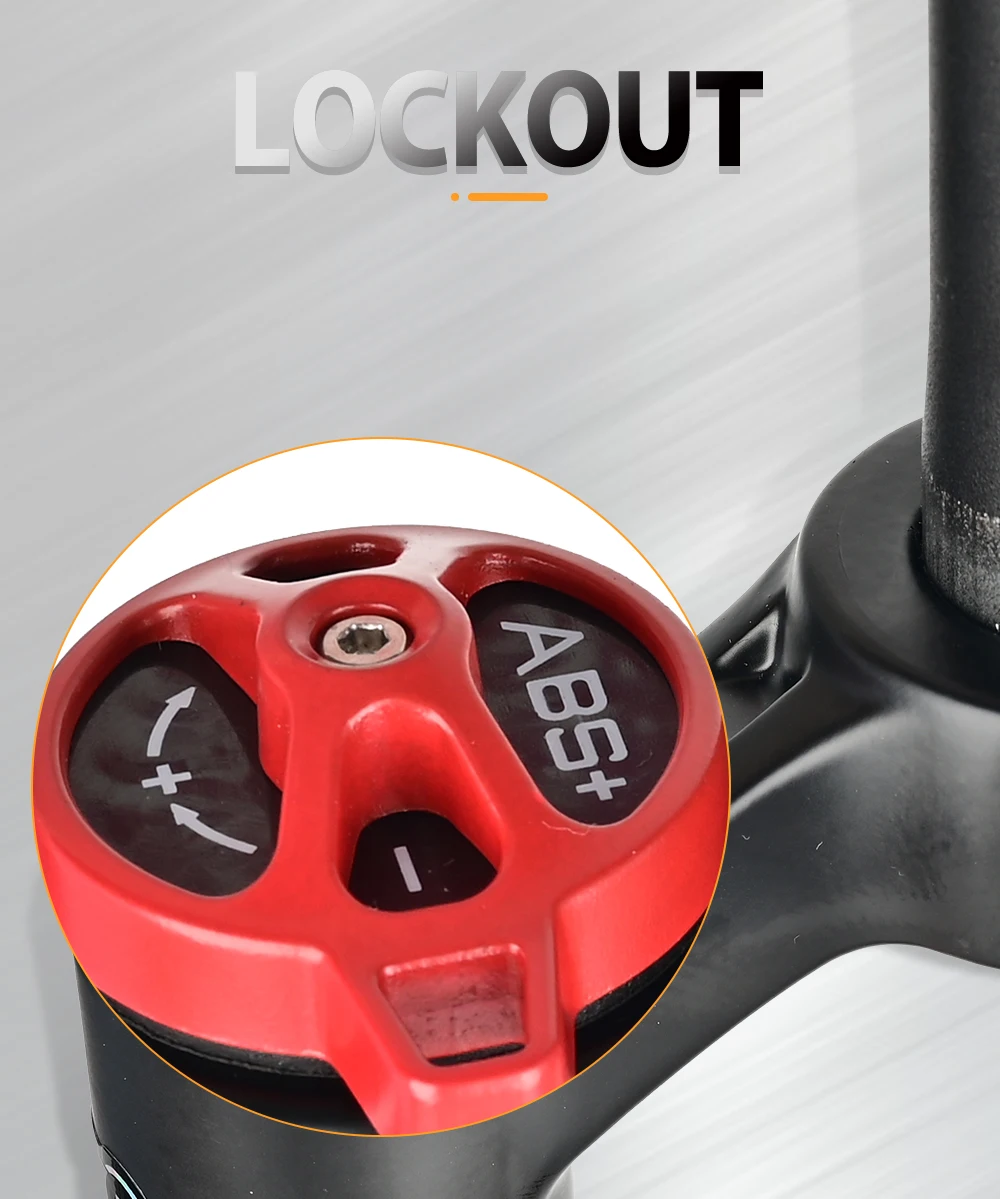

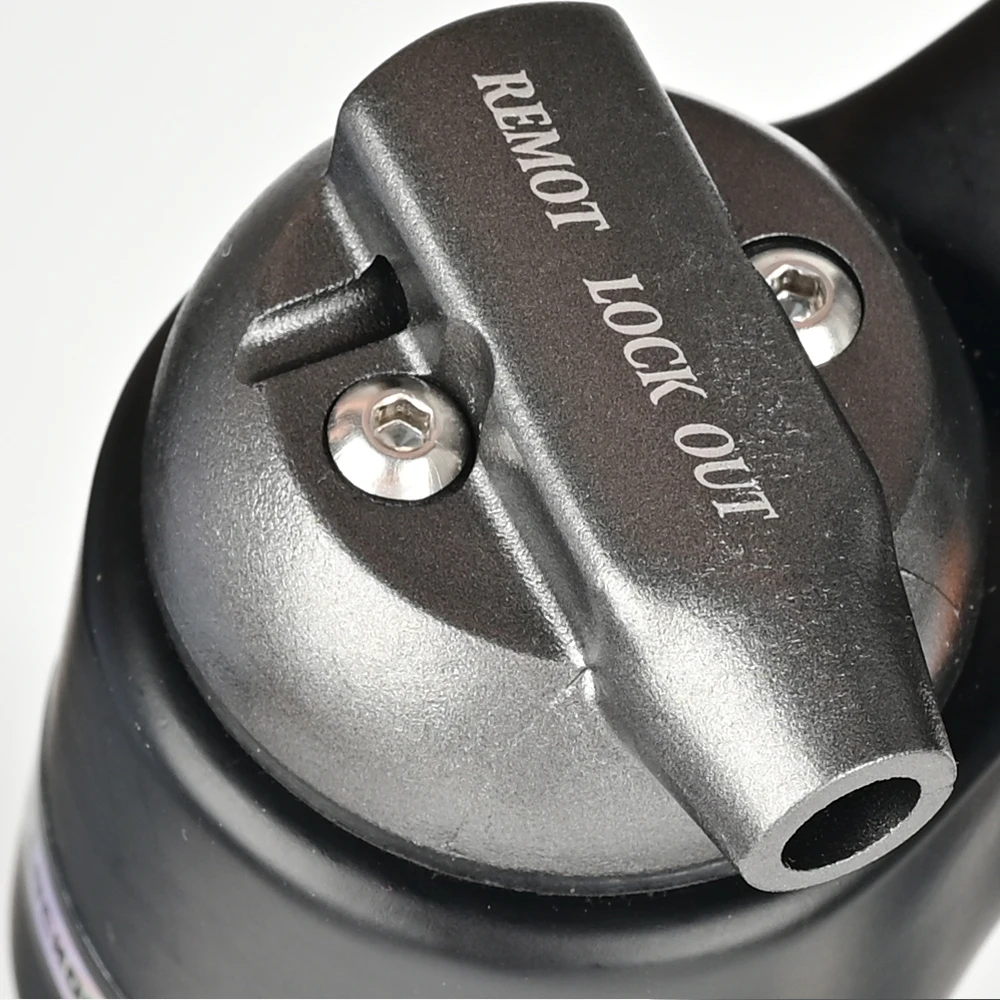

The Lockout setting prevents the fork from compressing until significant impact occurs.
When the lockout adjuster knob is in the open position the suspension fork is able to compress quickly and freely through its full range of travel.
When the lockout adjuster knob is in the lock position the suspension fork will resist compressing into its travel until significant bump impact or downward force occurs.
To activate lockout mode, rotate the adjuster knob clockwise until it stops.
To deactivate lockout mode, rotate the adjuster knob counter-clockwise.

27.5”'(1670-1790+/-50g)

Use: XC
Brake: Disc brake
Quick release: 9x100mm

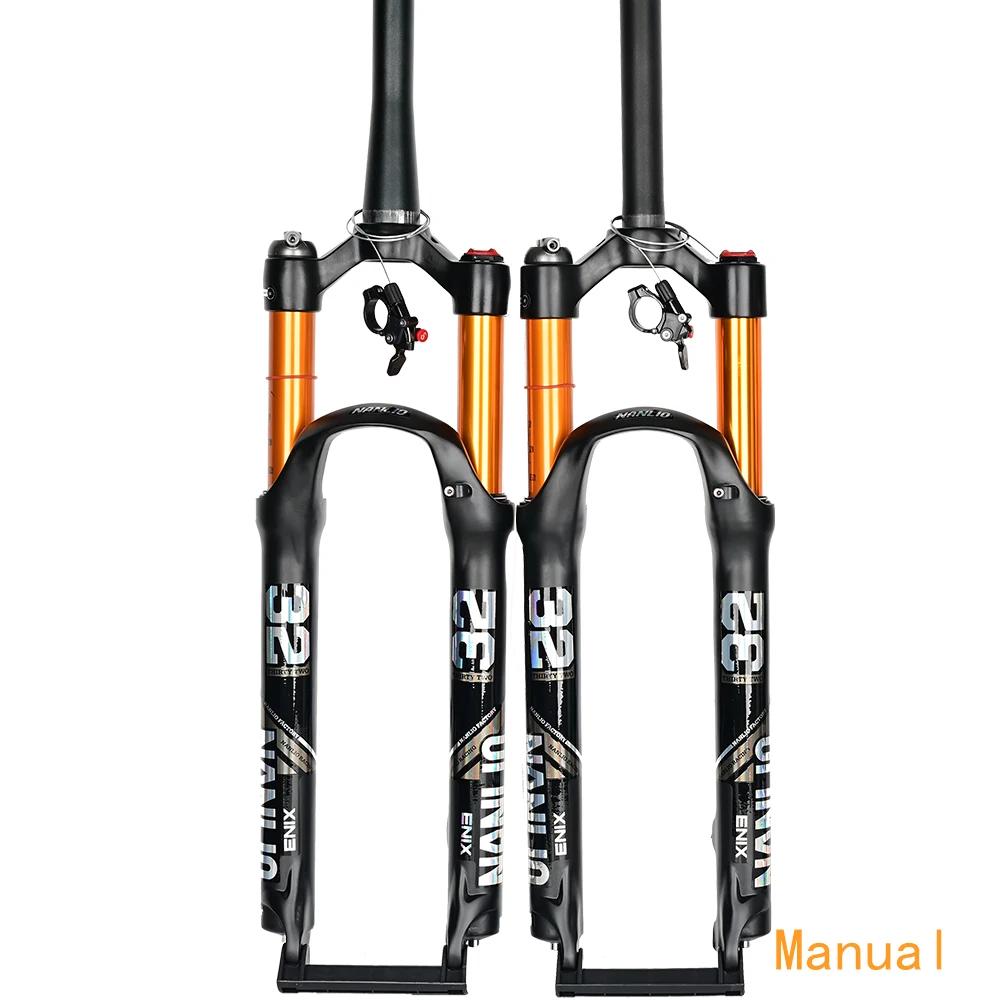

Lockout: Manual / Remote
Steerer Diameter: 1.1/8″ – 1.5″ Tapered; 1.1/8″ Straight

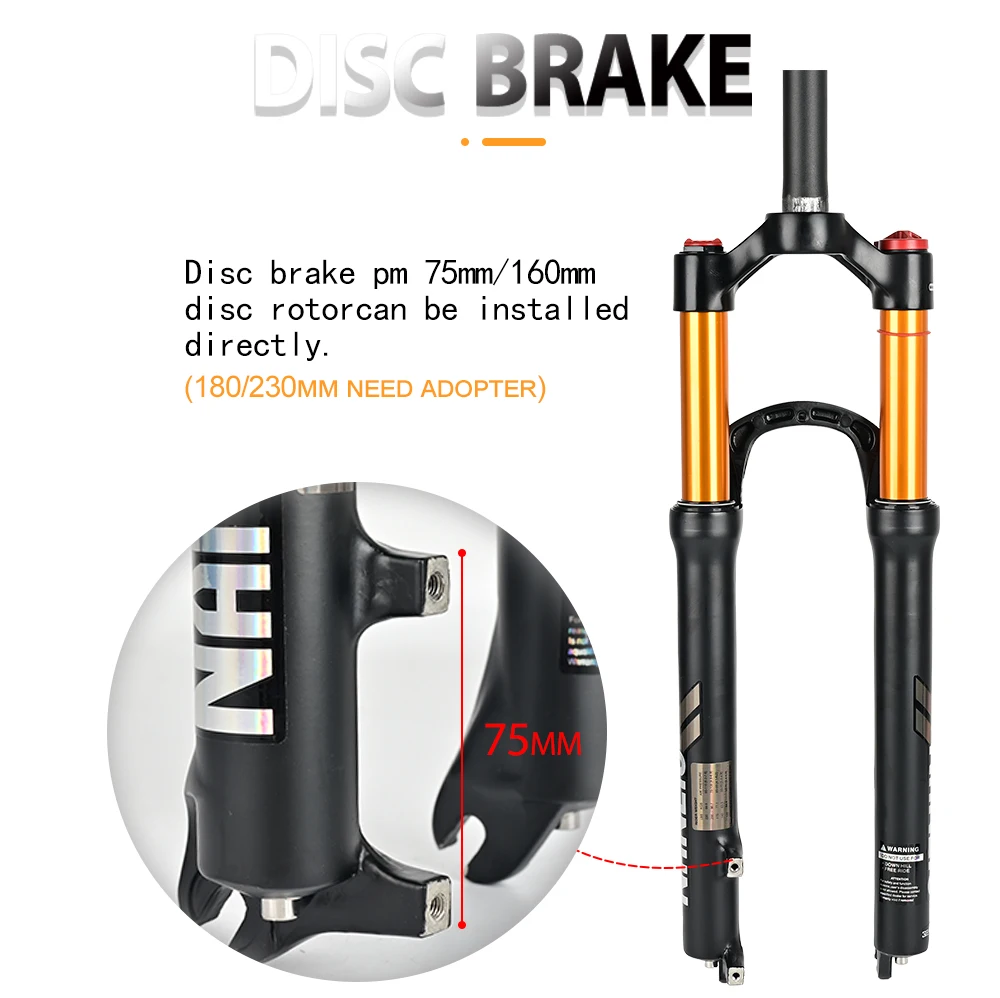

Maximum rotor dimension: 160mm (plus the adapter can be 180mm)
Travel: 100mm (120mm refers to the exposed stroke And 100mm is the actual active stroke)

29”(1720–1800+/-50g)

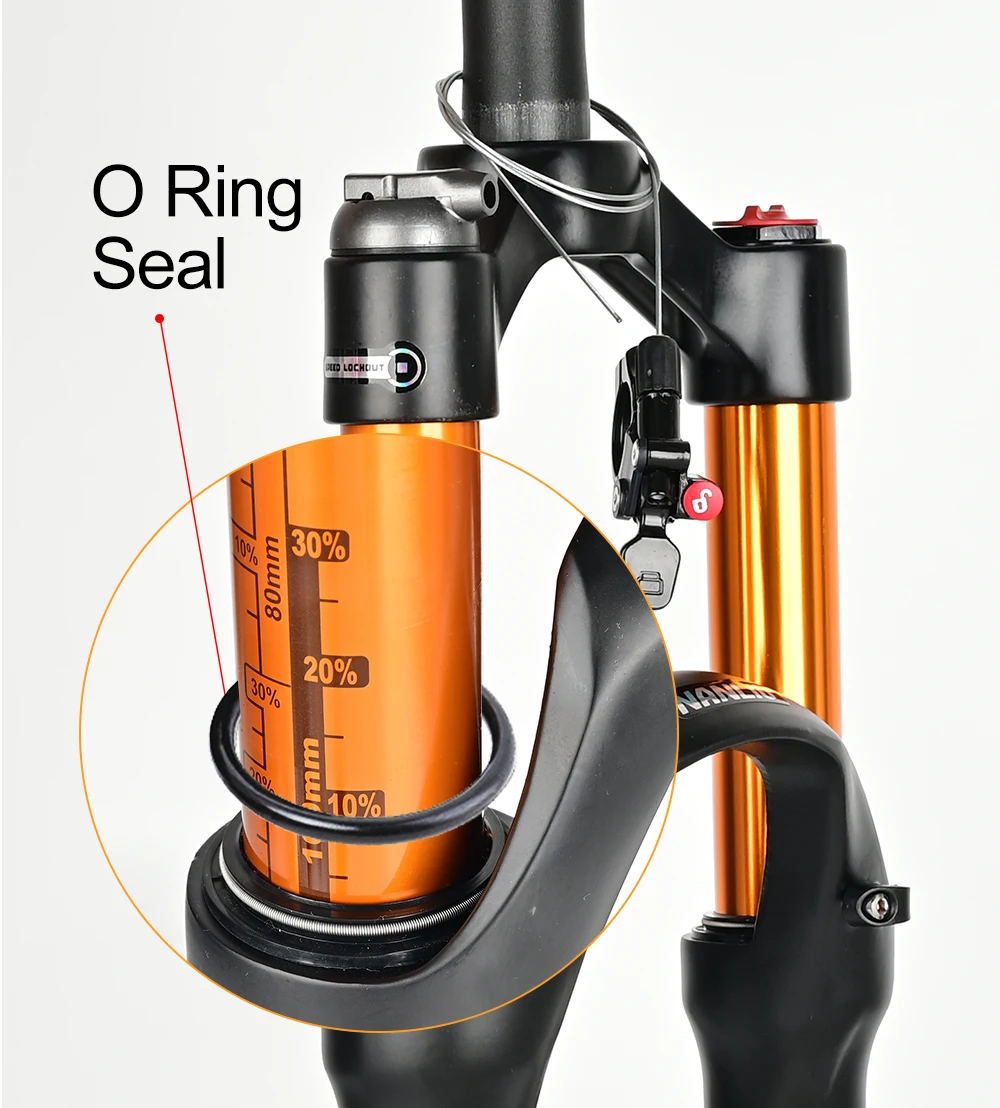

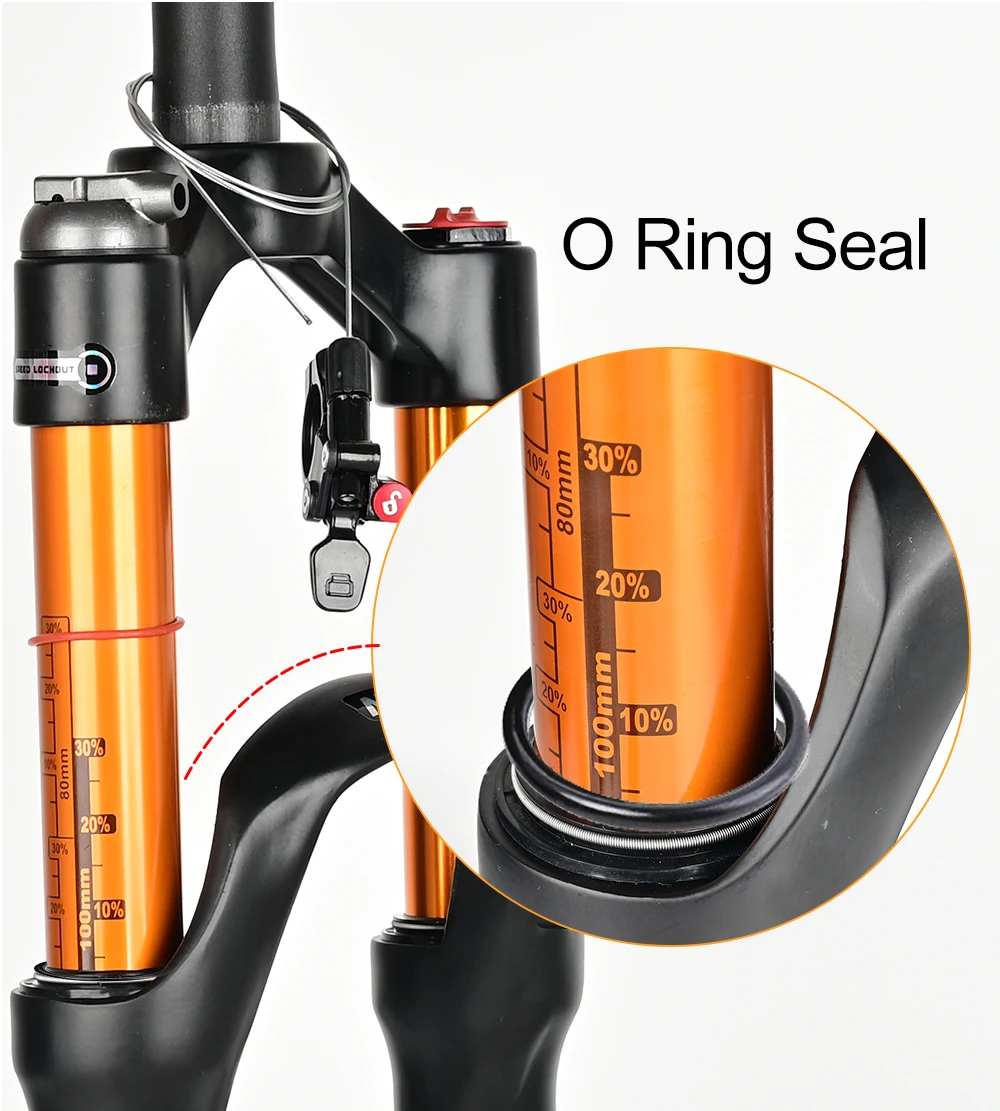

O Ring Seal

Silicone material
Waterproof and oil resistant, corrosion-resistant.

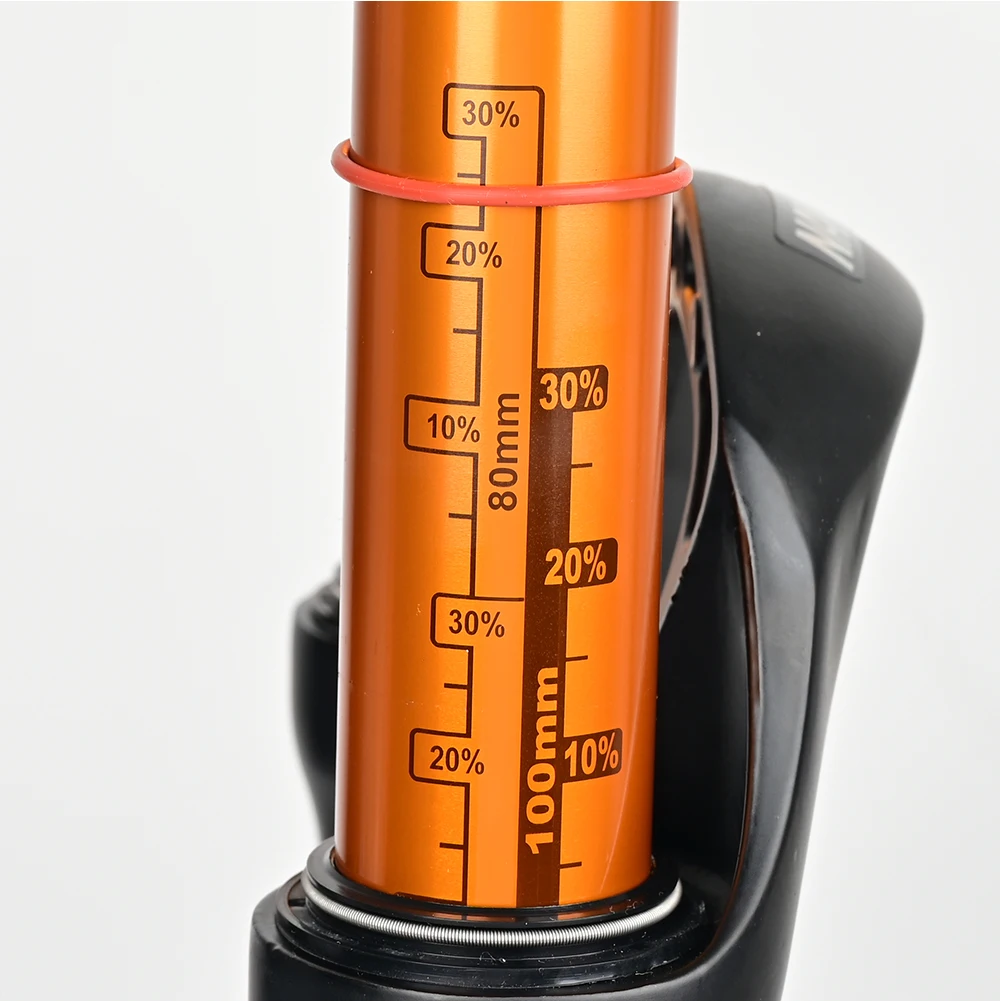

The maximum stroke of the fork can be accurately measured through the height of the travel circle.
Ultra light, both functional role, can be used as decorations.Weight:
26incn :1650g ~1700g +/-50g (for reference only)
27.5inch: 1670g ~1790g +/-50g (for reference only)
29inch: 1720g~1800+/-50g (for reference only)
Be applicable:MTB Road Bike

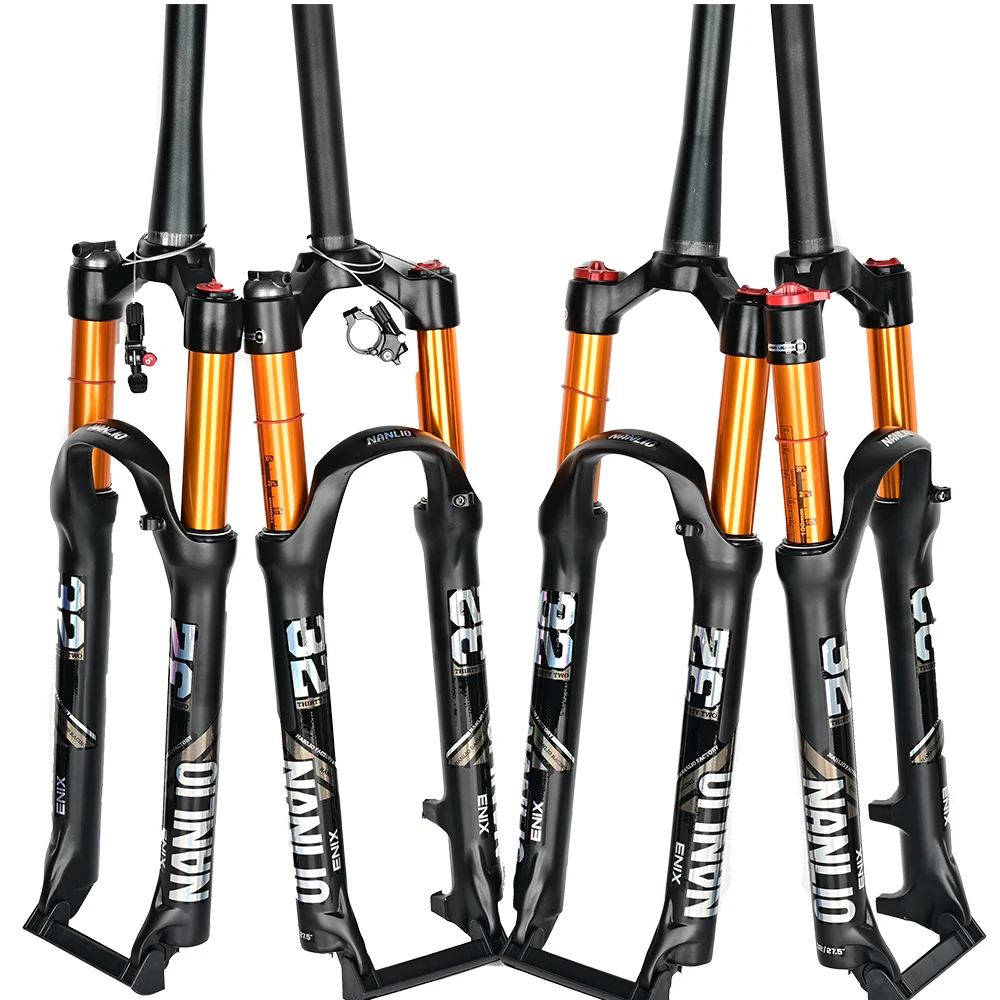

Options: Straight Tube/ Tapered tube, Line control/Hand control

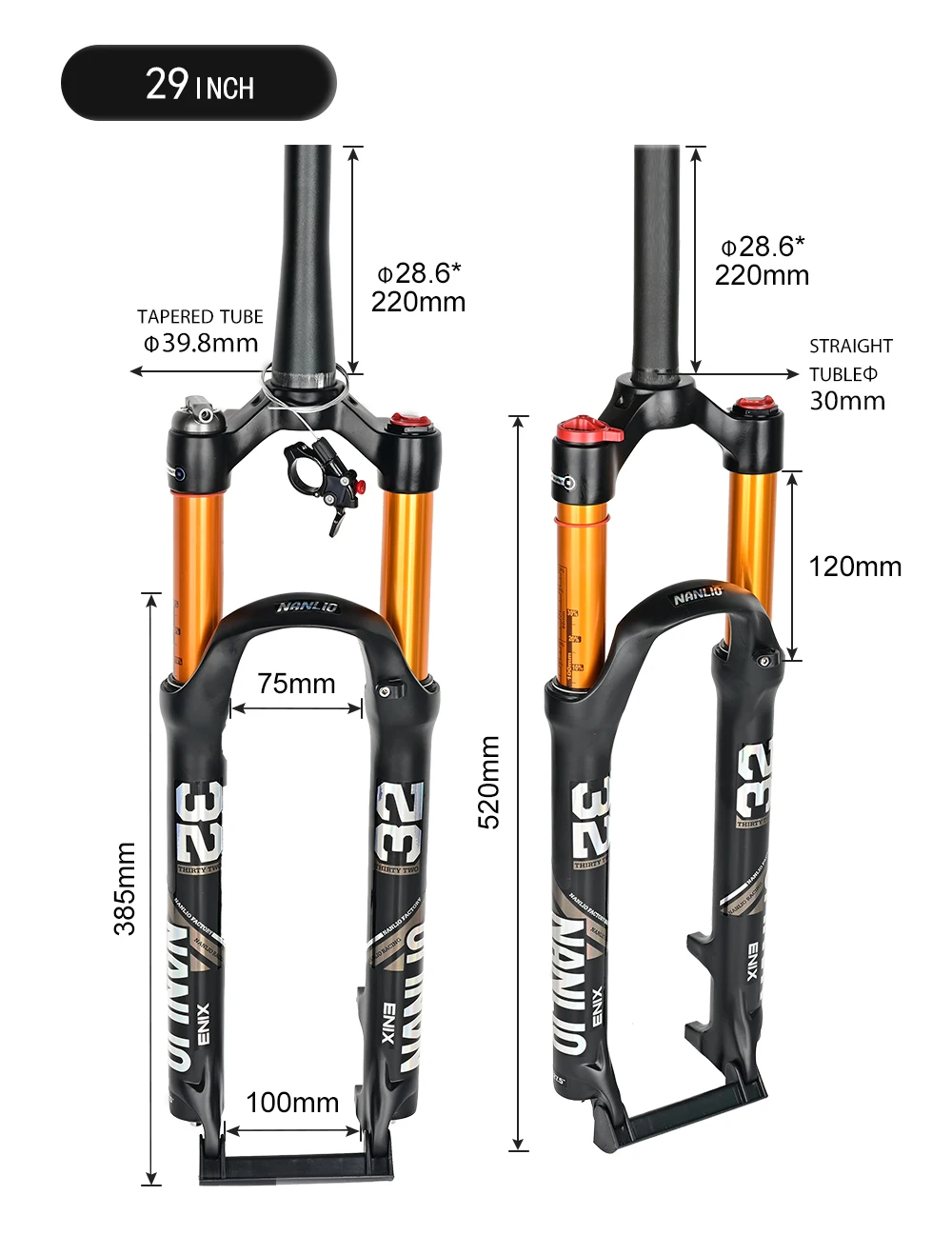

If you want more information about the fork size ,
please see the picture below types

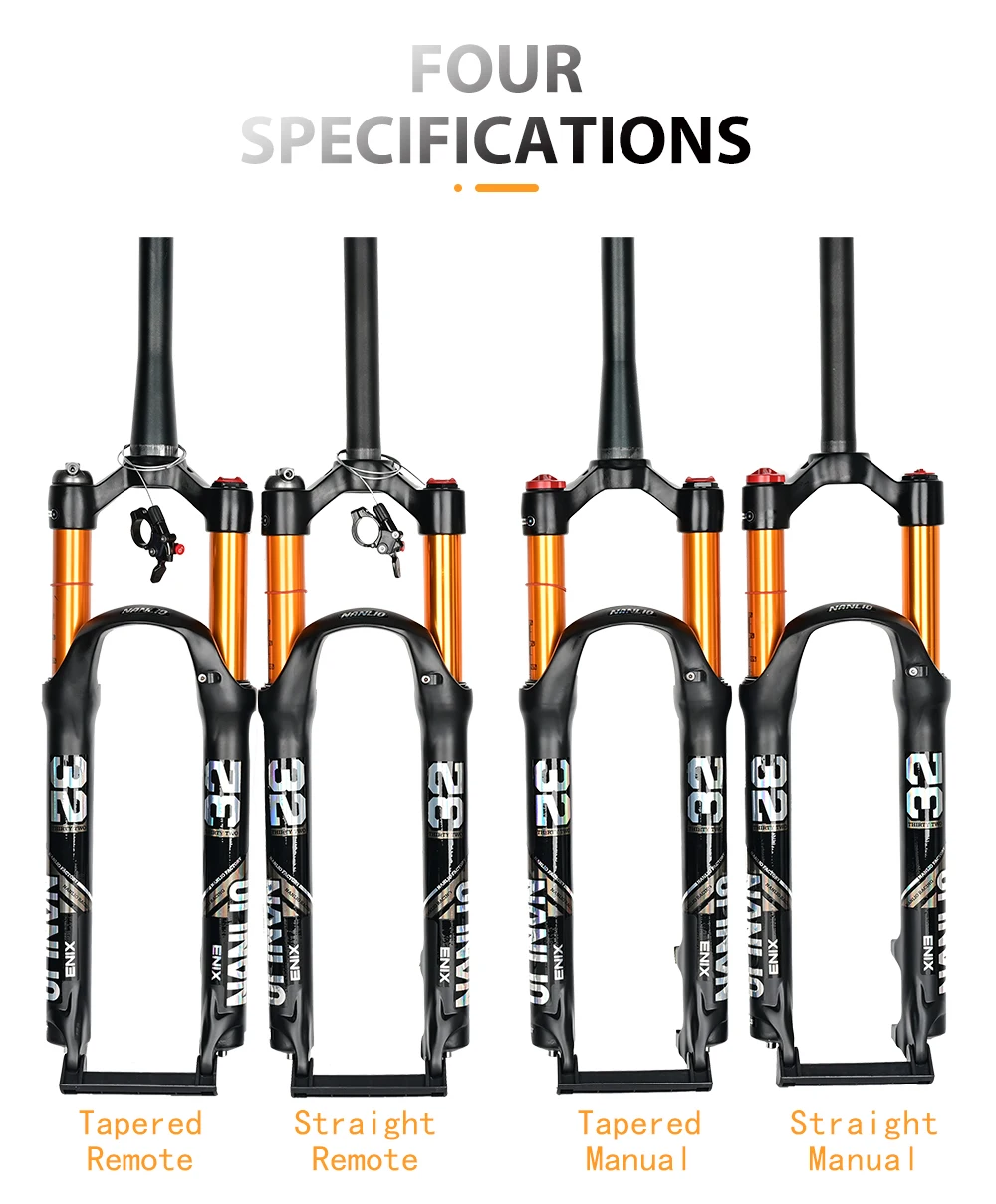

4 Style

Choose the right fork for your frame~

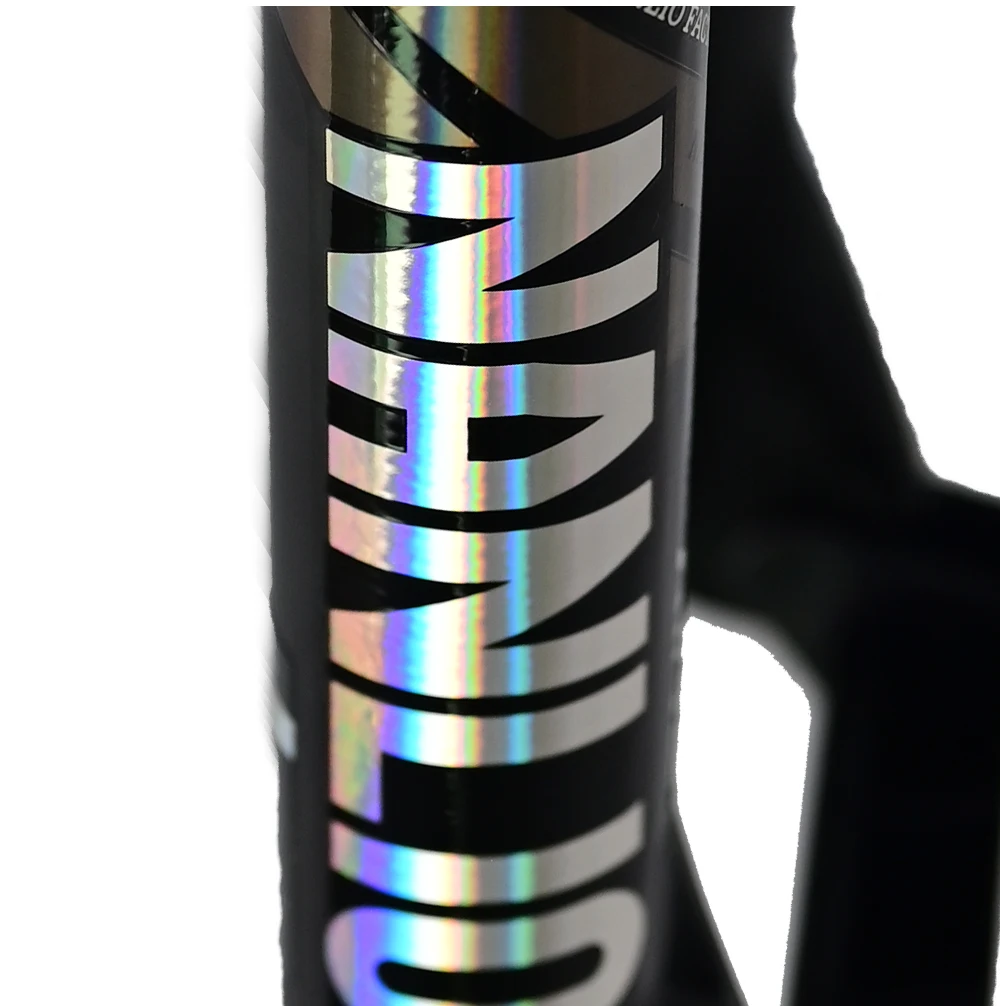

also adds a bit of flash to a bike that was pretty dull-looking .
