SHIMANO DEORE M6100 2 Piston Brake

Shimano Deore BL-M6100 brake lever
The hydraulic Deore BL-M6100 brake lever is characterized by Shimano’s SERVOWAVE technology which improves the lever’s modulation ability. Because the brake lever absorbs a lot of braking distance right at the start of its movement, the brake pads have disc contact more quickly and it remains more lever travel to adjust braking force. That is why SERVO WAVE brake systems are characterized by faster response, higher performance and shorter idle travel.

The 2-finger brake lever’s construction is inspired by XTR, Deore XT and SLX series, so the clamp is not mounted parallel, but with an angle to the handlebar creating a second contact point which provides significantly increased stiffness. For individual customizability, the lever is equipped with an integrated, tool-based reach adjustment option. Thanks to the I-Spec EV design the Deore SL-M6100-I shifting levers can be mounted directly to the brake lever.

Shimano Deore BR-M6100 disc brake caliper
With its 2-piston construction, the Shimano Deore BR-M6100 Postmount brake caliper is perfect for Cross Country use. The G03S Resin brake pads in combination with the light caliper guarantee extremely good deceleration.

M6100 brake length of the hose：Front Left 750/800/850/900mm；

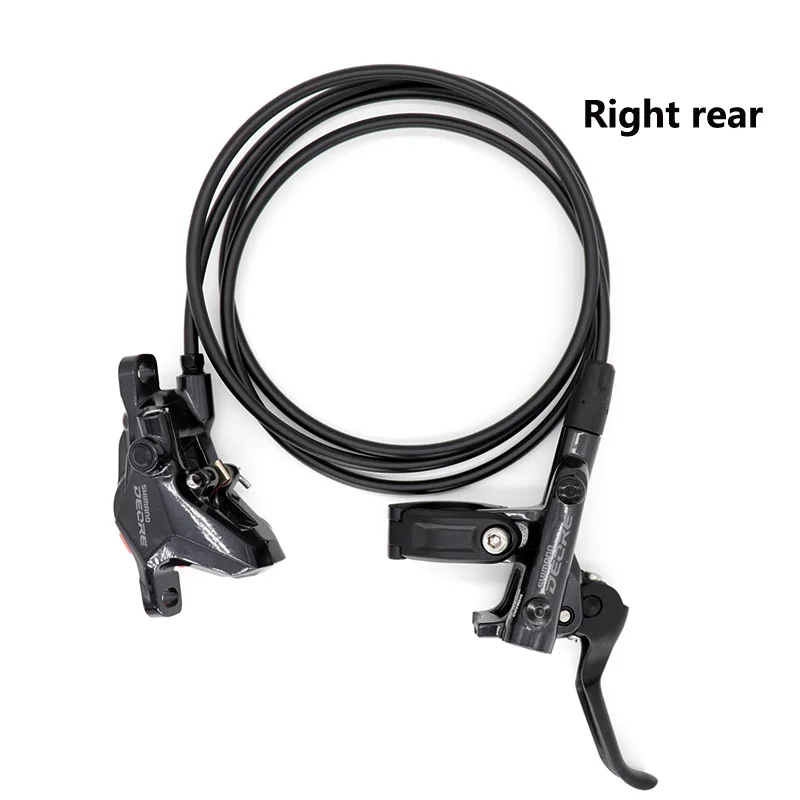

     Right Rear 1450/1500/1550/1600mm

Content of delivery:

hydraulic disc brake set:

BL-M6100 brake lever
BR-M6100 caliper incl. brake pads
SM-BH90-SS brake hose

Material:
lever: aluminium (anodized)
master cylinder, caliper: aluminium (painted)
pistons: resin
hardware: stainless steel, steel
discs: SM-RT54, SM-RT56, SM-RT64, SM-RT66 / 140-203 mm (not included)
length:1500mm/1600mm/1700mm
brake fluid:Mineral Oil
Brake pads: G03S/G01S Resin/ J03A Resin Ice-Tech pads/ Melal lec-Tech Pads:J04C

Please pay attention to the maximum permitted disc diameter depending on your fork or frame.
